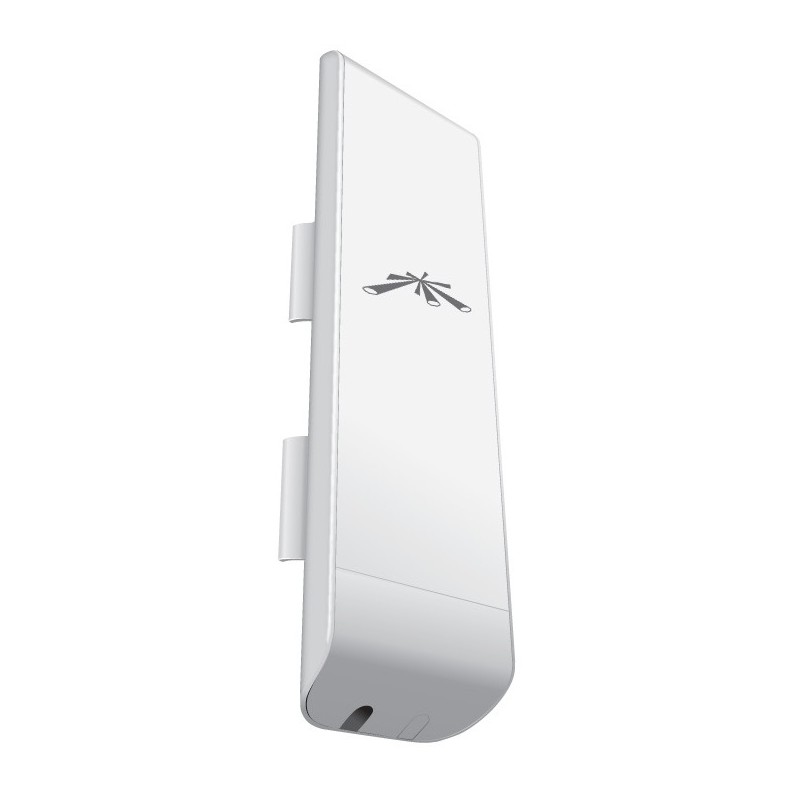

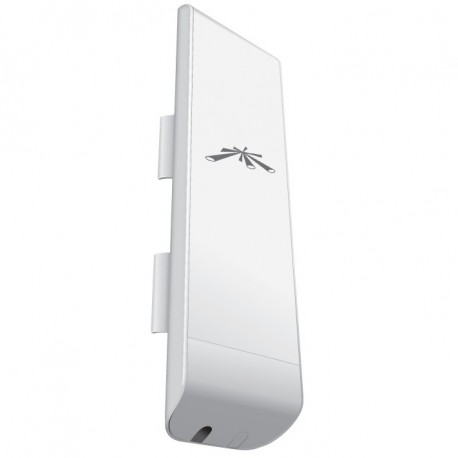

Ubiquiti Networks™ set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the original NanoStation™. The NanoStationM and NanoStationlocoM take the same concept to the future with sleek and elegant form factors, along with integrated airMAX™ (MIMO TDMA protocol) technology. The low cost, high performance, and small form factor of NanoStationM and NanoStationlocoM make them extremely versatile and economical to deploy

NanoStation M5 Specifications

System Information

Model: NanoStationM
Processor Specs: Atheros MIPS 24KC, 400 MHz
Memory: 32 MB SDRAM, 8 MB Flash
Networking Interface: (2) 10/100 Ethernet Ports

Regulatory/Compliance Information

Model: NSM5/NSM2/locoM5/locoM2
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes

Physical/Electrical/Environmental

Model: NSM5
Dimensions (mm): 294 x 31 x 80
Weight: 0.4 kg
Power Supply (PoE): 24V, 0.5A
Max. Power Consumption: 8 W
Gain: 16 dBi
Polarization: Dual Linear
Enclosure Characteristics: Outdoor UV Stabilized Plastic
Mounting: Pole Mounting Kit Included
Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Operating Temperature: -30 to 75° C
Operating Humidity: 5 to 95% Condensing
Shock & Vibration: ETSI300-019-1.4
