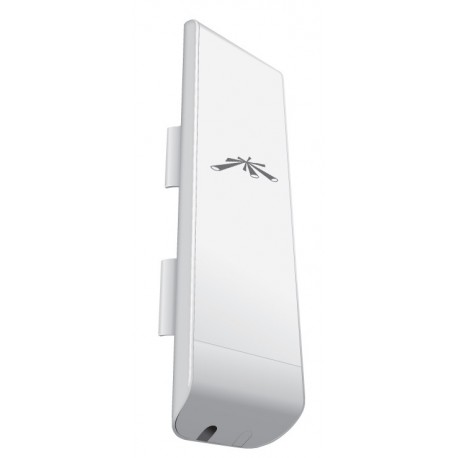

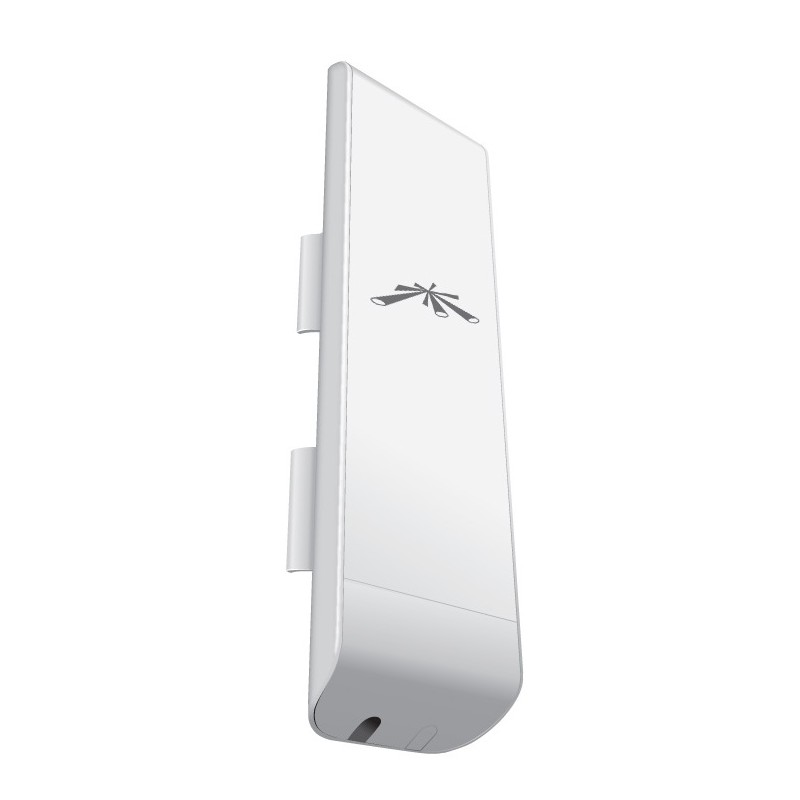

NanoStation M2: 2.4GHz Hi Power 2x2 MIMO AirMax TDMA Station. The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors. 150+ Mpbs real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor. Secondary ethernet port with software enabled POE output for seamless IP Video integration. Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.

CLICK HERE FOR DATA SHEET

NanoStation M2 Specifications

System Information

Model: NanoStationM
Processor Specs: Atheros MIPS 24KC, 400 MHz
Memory: 32 MB SDRAM, 8 MB Flash
Networking Interface: (2) 10/100 Ethernet Ports

Regulatory/Compliance Information

Model: NSM5/NSM2/locoM5/locoM2
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes

Physical/Electrical/Environmental

Model: NSM2
Dimensions (mm): 294 x 31 x 80
Weight: 0.4 kg
Power Supply (PoE): 24V, 0.5A
Max. Power Consumption: 8 W
Gain: 11 dBi
Polarization: Dual Linear
Enclosure Characteristics: Outdoor UV Stabilized Plastic
Mounting: Pole Mounting Kit Included
Power Method: Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Operating Temperature: -30 to 75° C
Operating Humidity: 5 to 95% Condensing
Shock & Vibration: ETSI300-019-1.4
