Ubiquiti Networks launches a new generation of airMAX ac beamwidth isolation antennas, the PrismAP.

With flexible sectorization for optional antenna beamwidths, the PrismAP antennas are interchangeable and improve beam‑shaping for specific deployment and environment needs. The PrismStation 5AC and IsoStations use horn antenna sectors designed for increased co‑location performance without sacrificing gain.

Symmetrical horn antennas (30° and 45° versions, models PrismAP-5-30 and PrismAP‑5‑45, respectively) offer breakthrough scalability options for wireless systems. Unique beam performance and great co-location
characteristics allow for a higher density of sectors than traditional sector technology.

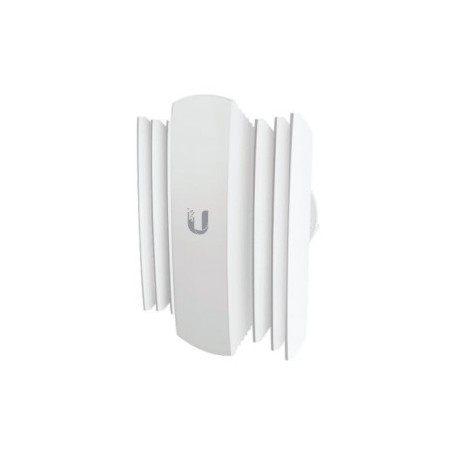

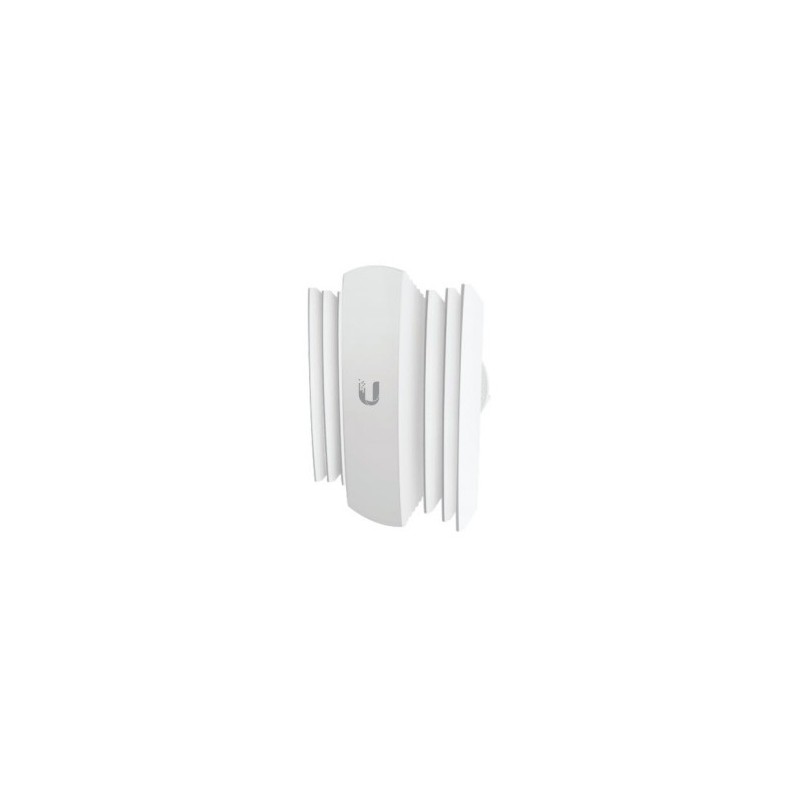

Asymmetrical horn antennas (60° and 90° versions, models PrismAP-5-60 and PrismAP-5-90, respectively) have naturally attenuated side lobes and extremely low back radiation. They offer best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
