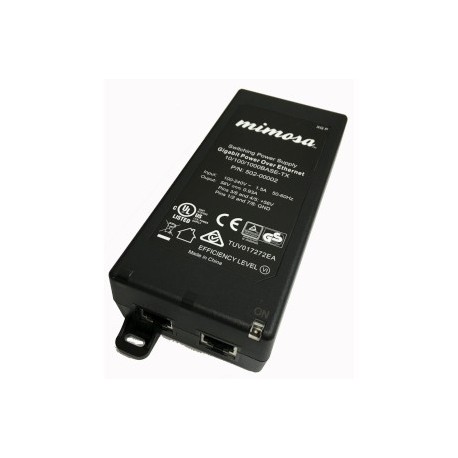

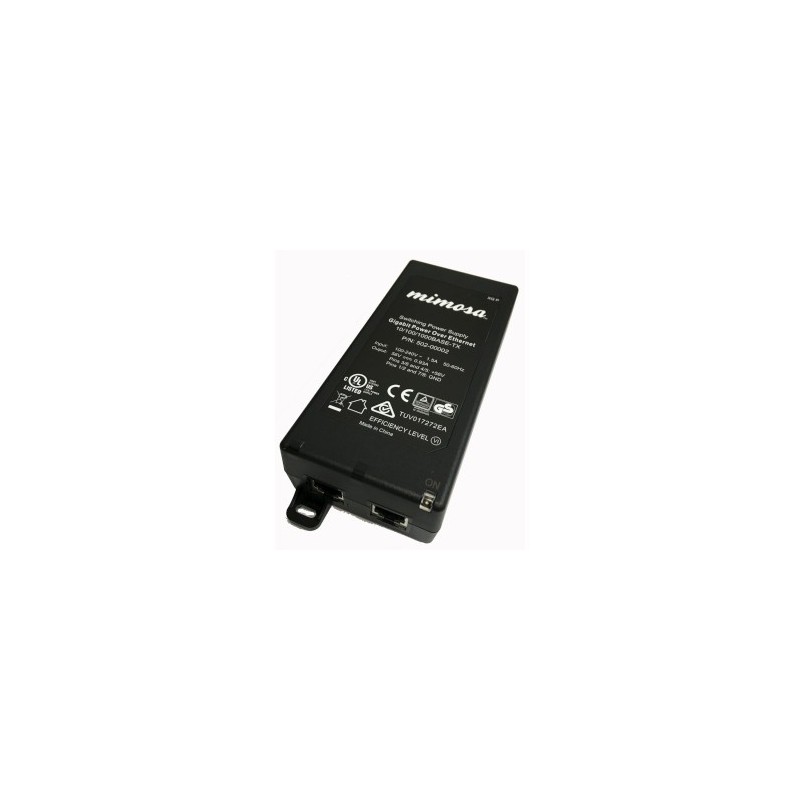

The Mimosa Gigabit 56V passive PoE wall plug is compact and clutter-free, eliminating the typical installation mess of power strips and extension cords. Leave behind a professional-looking installation while reducing the chances of accidental power disconnects caused by consumers tapping into power strips.

Data Transfer Rate:
Gigabit rated
Connectors:
Two (2) RJ-45
LEDs:
Power Indicator
Input Voltage:
100-240V ~ 0.8A 50-60 Hz
Output Voltage:
56V===0.275A
PIN 3,6 +56V
PIN 1,2 RETURN
AC Plug Types
Americas: Type A
EU: Type C
UK: Type G
AU/NZ: Type 1 -2 pin insulated
Dimensions:
51 mm (2.0”) x 86 mm (3.4“) x 33 mm (1.3“)
Weight:
0.11 kg (3.8 oz)
Operating Temperature:
-40 to +55 C
Compliance and Safety:
UL60950-1, IEC 60950-1, EN 55022, RoHS
