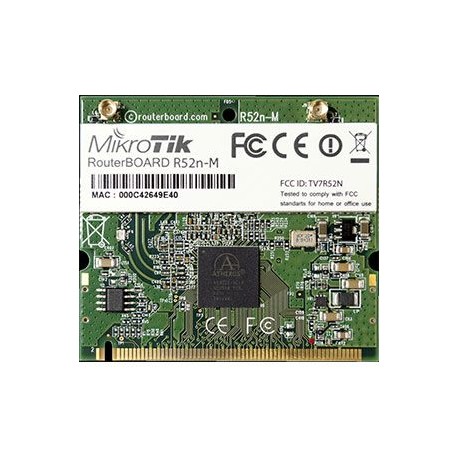

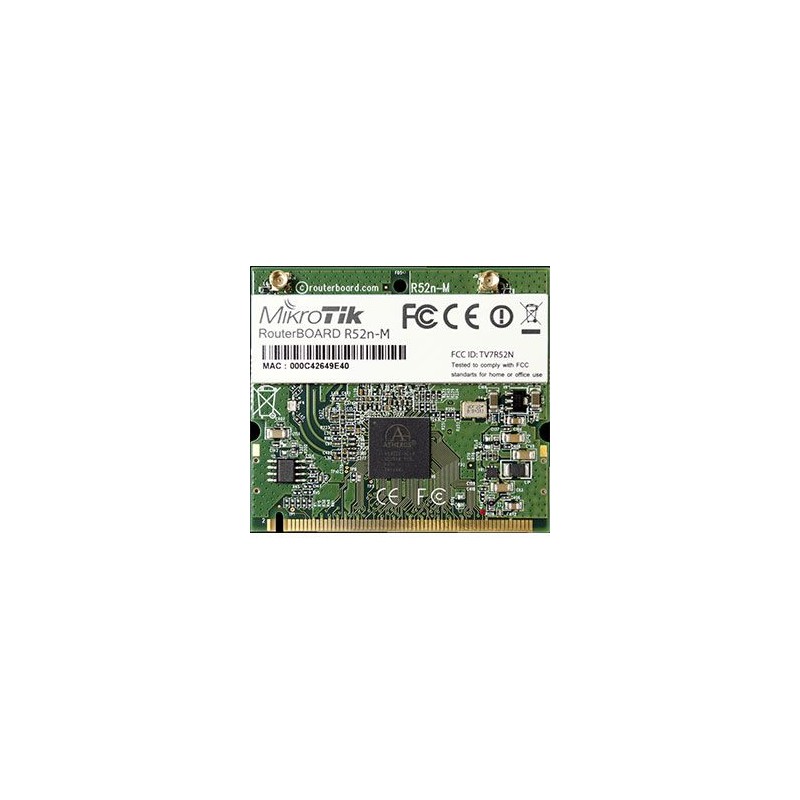

The RouterBOARD R52n-M miniPCI network adapter provides leading 802.11a/b/g/n performance in both 2GHz and 5GHz bands, supporting up to 300Mbps physical data rates and up to 200Mbps of actual user throughput on both the uplink and downlink. This card features the sturdy MMCX connectors for higher durability. Adding Wireless N to your Wireless device, it provides higher efficiency for everyday activities such as local network file transfers, Internet browsing, and media streaming.

Features

• Dual band IEEE 802.11a/b/g/n standard
• Output Power of up to 23dBm
• Support for up to 2x2 MIMO with spatial multiplexing
• Four times the throughput of 802.11a/g
• Atheros AR9220, chipset
• High Performance (up to 300Mbps physical data rates and 200Mbps of actual user throughput) with Low Power Consumption
• Two MMCX antenna connectors
• Modulations: OFDM: BPSK, QPSK, 16 QAM, 64QAM DSSS: DBPSK, DQPSK, CCK
• Operating temperatures: -50°C to 60°C
• Power consumption MAX 1.95W
• ESD protection +/- 12kV
