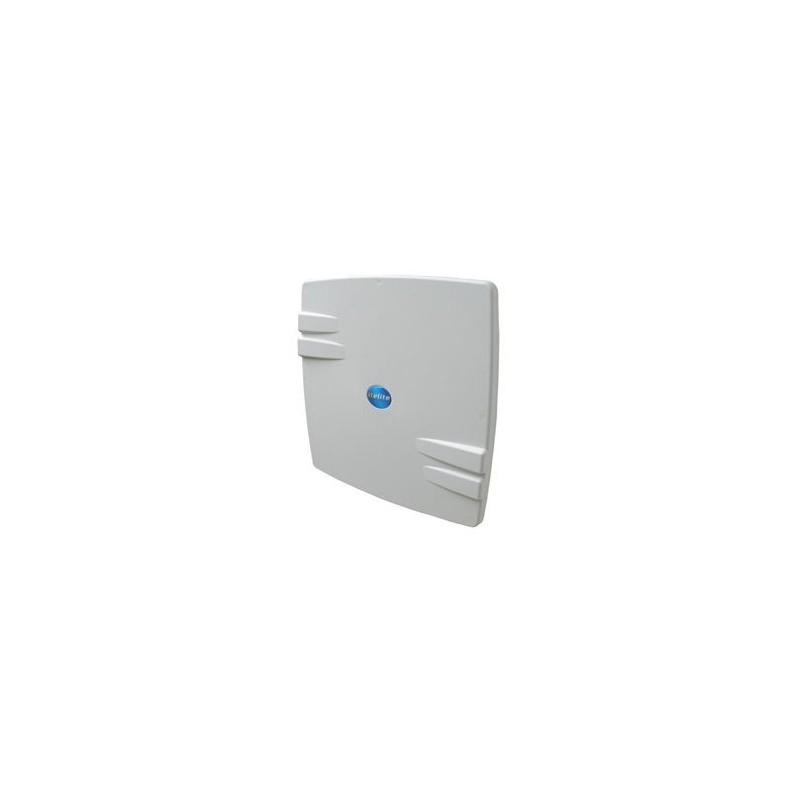

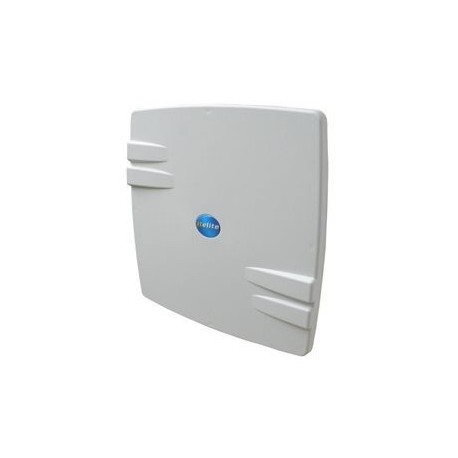

Antenna with multipurpose enclosure working in 5 GHz band with two independent directional panel antennas with 21 dBi gain with vertical and horizontal polarization. It is the ideal solution for MIMO and Nstreme dual configuration. The range includes weatherproof outdoor enclosure with panel antenna and enough compartment for RouterBoard or any other electronic equipment. Enclosure is furnished with special RJ-45 waterproof ethernet connector with an easy connection to Internet Network and PoE. Perfectly designed for operation under severe weather conditions. Proper materials allow operation in the salty water environment without corrosion. High quality construction of pole mounting elements guarantee easy elevation and easy tilt down as well as rock-stable operation. It can be used as customer premise equipment and also as small base stations. Inside the enclosure are suitable posts for Mikrotik RouterBOARS 411, 433 and 600 series.

Electrical Properties

Frequency

5.4 - 5.85 GHz

Gain

2x21dBi

Polarization

dual H&V

Beamwidth deg horizontal

10°

Beamwidth deg vertical

20°

VSWR

<1.8

Impedance

50 ohm

Front to back ratio

> 35dB

Port Isolation

> 45 dB

Lightning protection:

DC ground

Enclosure Properties

Technology:

Microstrip

Material:

UV protected

Colour:

Grey

Min temperature:

-40°C / -40°F

Max temperature:

80°C / 176°F

Mechanical Properties

Compatible with:

RB411, RB433 and RB600 series

Input Connector

2xUFL pigtail (or MMCX optional)*

Enclosure Connector

Waterproof Ethernet Connector

RJ45 (or cable gland optional)

Outsite Dimensions

385x385x80mm /

Weight

2.4kg / 5.3lbs

*UFL or MMCX pigtail option (please specify when ordering)

PRA-50021Dual
