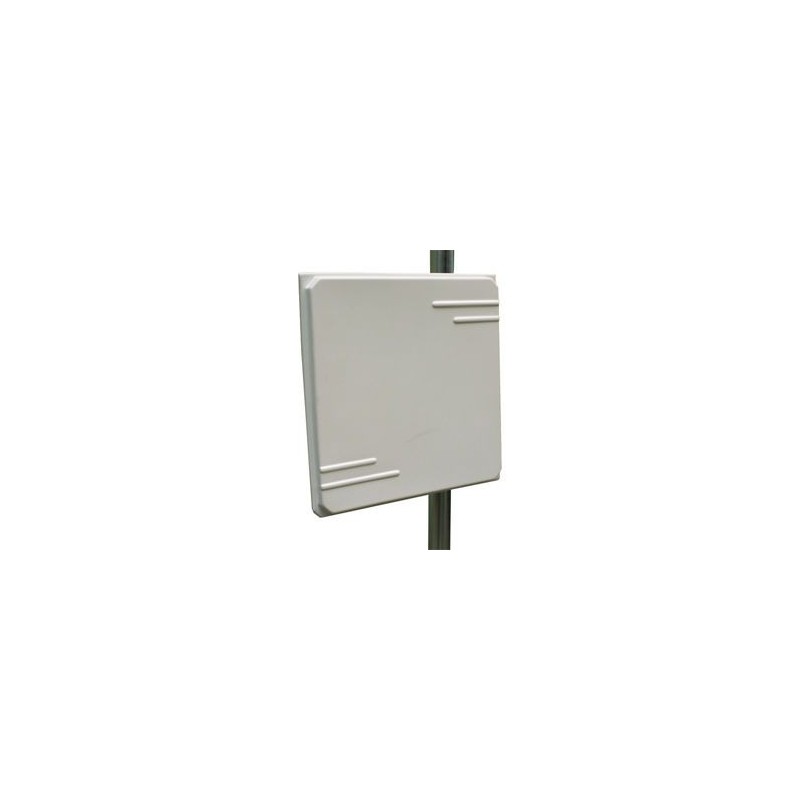

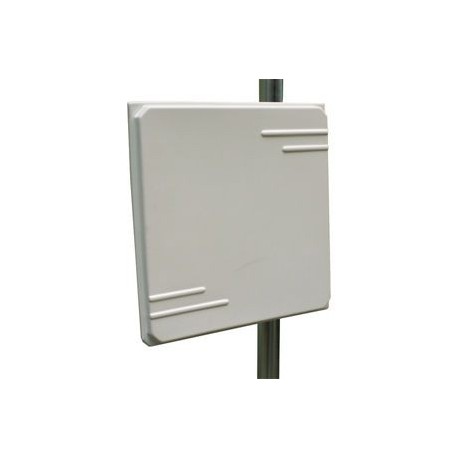

Panel antenna working in 5 GHz frequency with full 23 dBi gain. It can be mounted for horizontal or vertical
polarization. Made with very high quality materials, construction grade aluminium alloy, UV-protected plastic
cover and zinc galvanized U-bolt. Designed for operation under severe weather conditions. A proper materials
allow operation in the salt water environment without corrosion. Heavy-duty mounting elements guarantee an
easy elevation adjust as well as rock-stable operation. It can be used in client stations and as a small base
stations.

Electrical Properties

Frequency

5.1 - 5.9 GHz

Gain

23dBi

Polarization

horizontal or vertical

Beamwidth deg horizontal

10°

Beamwidth deg vertical

10°

VSWR

<1,8

Impedance

50 ohm

Front to back ratio

> 35dB

Enclosure Properties

Technology:

Microstrip

Material:

UV protected

Colour:

White

Ingress Protection (EN 60529):

IP 66

Min temperature:

-40°C / -40°F

Max temperature:

80°C / 176°F

Mechanical Properties

Input Connector

N-type / female

Outsite Dimensions

345x345x20mm / 13.6x13.6x0.8"

Weight

1.3kg / 2,9lbs

PAT50023
