The UCM6T is designed to fit the following Ubiquiti antennas:

• AMS 2G-90-16 (2 GHz 90 Degree 16 dB)
• AMS 2G-120-15 (2 GHz 120 Degree 15 dB)
• AMS 5G-90-20 (5 GHz 90 Degree 20 dB)
• AMS 5G-120-19 (5 GHz 120 Degree 19 dB)
• AMS 3G-120-18 (3 GHz 120 Degree 18 dB)
• AM-V2G-Ti (2 GHz 60/90/120 Degree 15/16/17 dB)
• AM-V5G-Ti (5 GHz 60/90/120 Degree 19/20/21 dB)

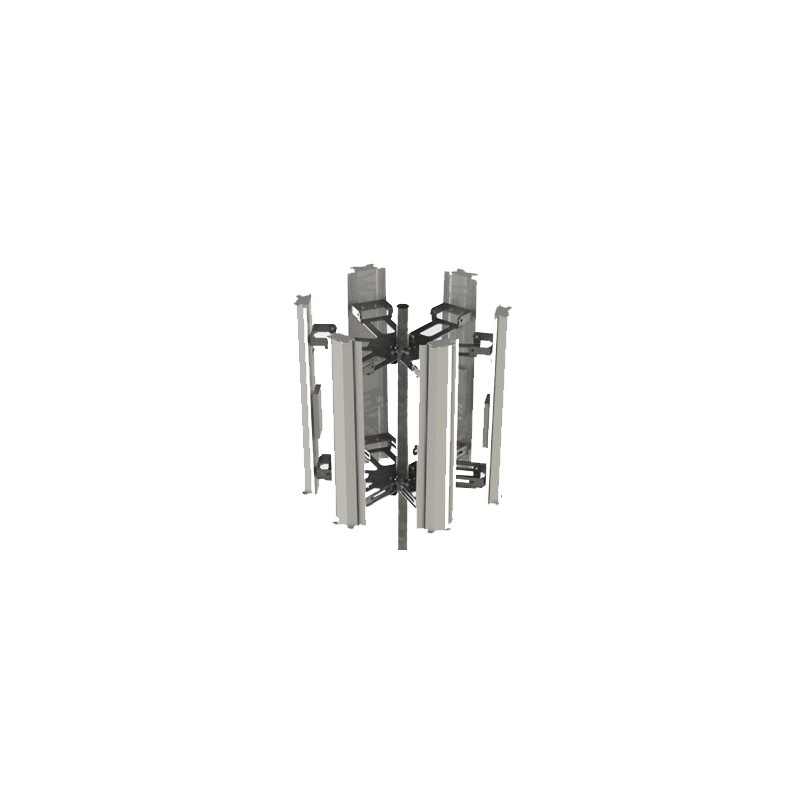

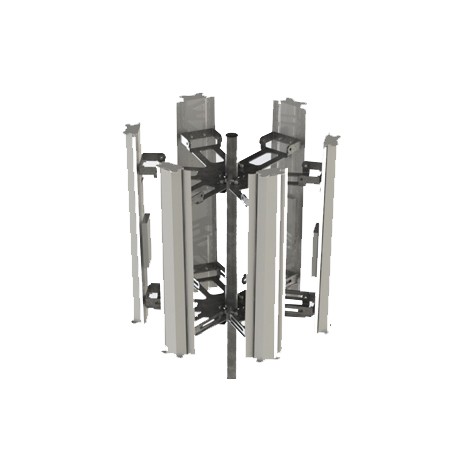

The RF Armor UCM6T 6 gang cluster mount is designed exclusively to work with Ubiquiti Rocket and MIMO sector antennas. Compatible with standard and Titanium 2.4 GHz, 3.65 GHz, and 5 GHz airMAX sectors, this 6 gang cluster mount allows for six 60, 90, 120 degree sectors to be placed on a single pole at the same horizontal elevation in a very tight cluster.

Weight: 21 lbs

Galvanized steel with Zinc bolts

Maximum pipe diameter - 3" OD

Includes 2 Brackets
