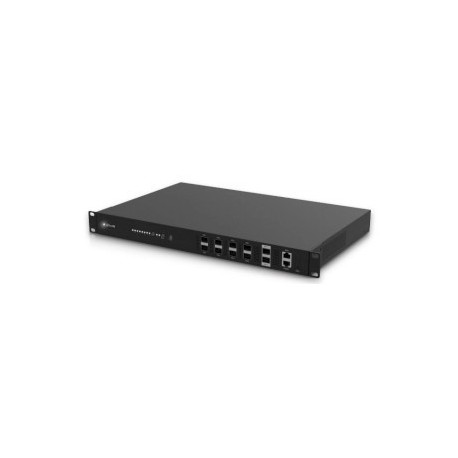

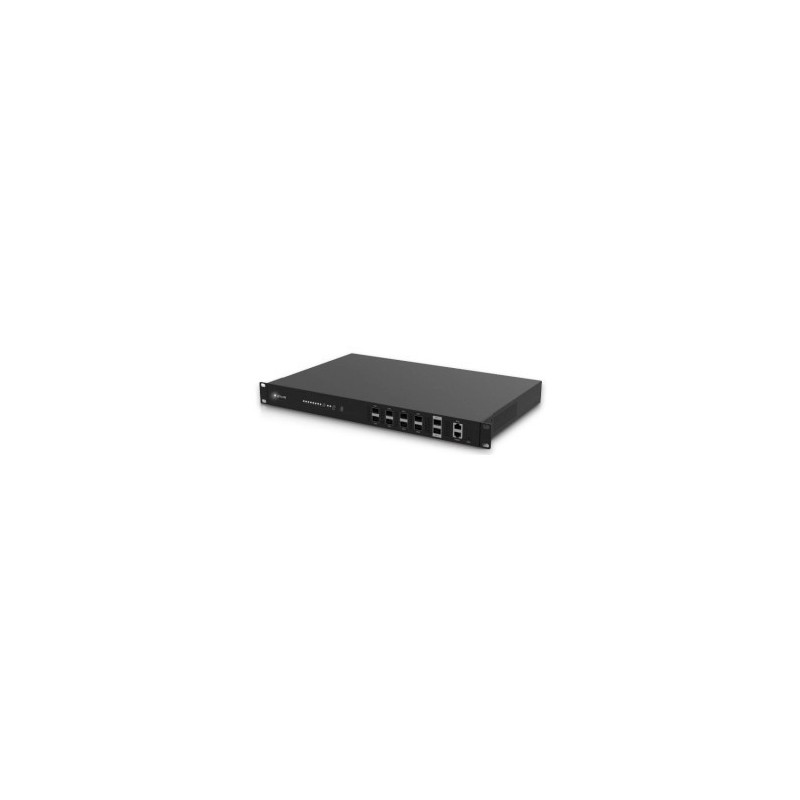

The UF-OLT provides flexible power options, with two modular power adapter bays that can house either AC/DC or DC/DC power modules. One AC/DC module is included; additional modules can be purchased separately.

Features

• Ports: (8) GPON SFP Ports, (2) SFP+ Ports
• Concurrent Clients: 1024 ONUs
• GPON Range: Up to 20 km Link
• GPON Speeds: 2.488 Gbps Upstream (TX), 1.244 Gbps Downstream (RX)
• Wavelengths: 1490 nm Upstream (TX), 1310 nm Downstream (RX)
• Max. Power Consumption: 40W
• Power Method: 54VDC PSU Module
• Mounting: 1U Rack-Mountable (Optional)
