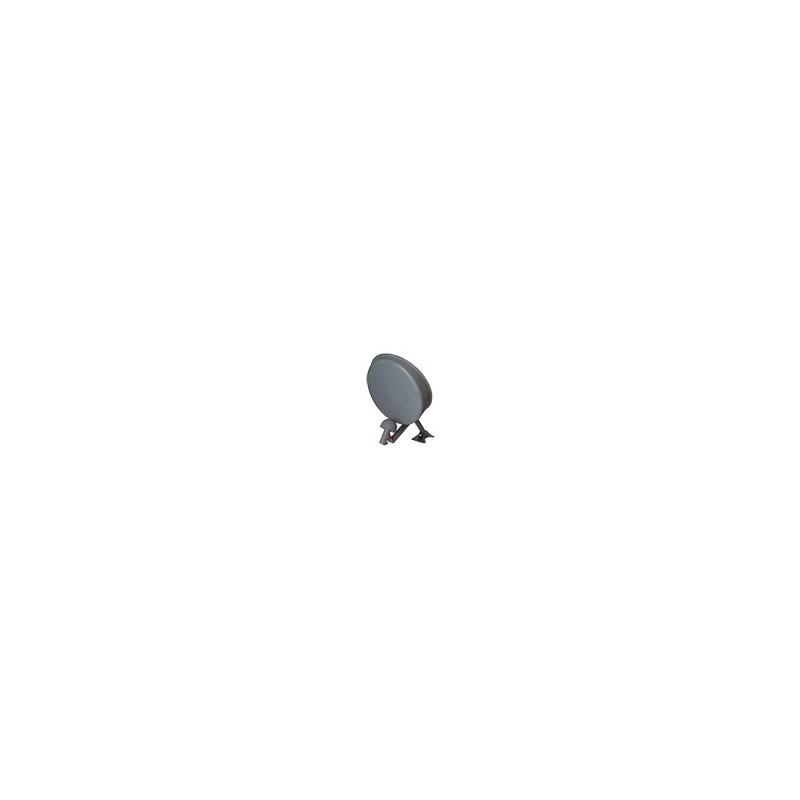

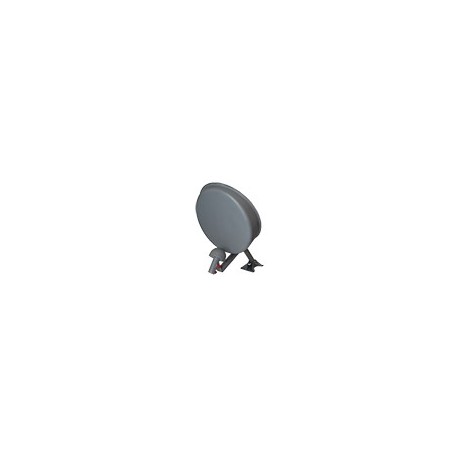

The 58DPHP reflector is built with the addition of a very high quality dual polarized feed horn and lobe-clipping shroud to meet European ETSI specifications.

This form factor is well suited for residential and low-profile commercial installations, especially in upscale neighborhoods, and would be recognized by most casual observers as nothing more than a satellite TV antenna.

Coupled with our Force Plate™ mounting system (sold separately), this antenna assures a very solid point-to-point solution for critical backhaul applications. It also serves as a robust point-to-multipoint extended range antenna.

Features

• Wide-Band 5.2-5.8 GHz
• Integral Feed Radome for snow and ice resistance
• AccuAim™ elevation adjustment
• High efficiency offset feed
• Light weight

Specifications



Frequency:

5.2-5.8 GHz





Gain:

26.5 dBi @ 5.8 GHz

25.0 dBi @ 5.2 GHz





Effective Aperture:

18.2 inches (46 cm)





Beamwidth:

7°





VSWR:

<1.5:1 for 5.2-5.8 GHz





Return Loss:

<14 dB





F/B Ratio:

30 dB





V/H Port Isolation:

>40 dB





Input Power:

100 W (max)





Impedance:

50 Ohms





Connector:

Type N female x 2





Wind Load:

36.6 lbs @ 93 mph





Height:

20.9 inches (53 cm)





Width:

19.2 inches (49 cm)





Polarization:

Dual
