3.65DP-22
3.65DP-22

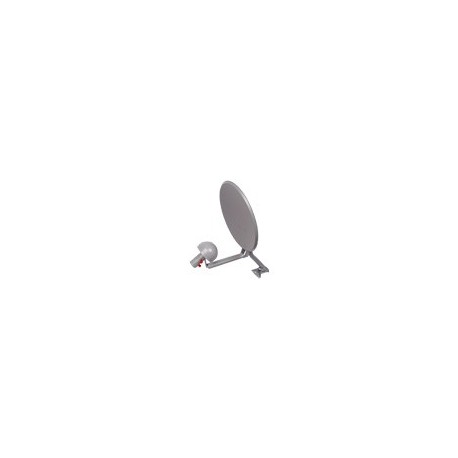

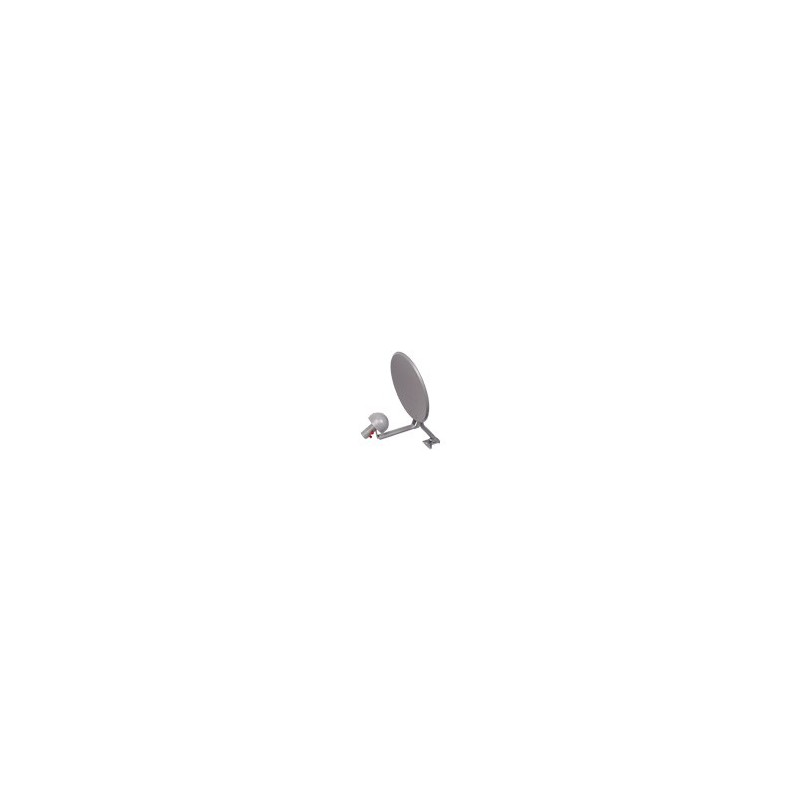

3.65 Dual Polarization 22dBi Gain Ant
Categories
Manufacturers
More info
Dual polarization maximizes the utilization and throughput of the installation at half the price of a typical dual polarized antenna. The 3.65DP refl ector is built with the addition of a very high quality dual polarized feed horn.
Features
- AccuAim™ elevation adjustment
- High efficiency offset feed
- Light weight
Specifications
Electronic Specifications
- Frequency:
- 3.65 - 3.70 GHz
- Gain:
- 22.7 dBi
- Effective Aperture:
- 18.2 inches (46 cm)
- Beam Width:
- 10.7 degrees
- F/B Ratio:
- 30 dB
- V/H Port Isolation:
- > 20 dB
- Input Power:
- 100 W (max)
- Impedance:
- 50 Ohms
- Connector:
- Type N Female x 2
- VSWR:
- 1.5:1
- Return Loss:
- > 14 dB
Mechanical Specifications
- Wind Load:
- Operational 60 MPH (97 km/hr)
- Survival 100 MPH (161 km/hr)
- Height:
- 20.9 inches (53 cm)
- Width:
- 19.2 inches (49 cm)
- Polarization:
- Dual Pol
Applications
- This form factor is well suited for residential and low-profile commercial installations, especially in upscale neighborhoods, and would be recognized by most casual observers as nothing more than a satellite TV antenna.
- This antenna ensures a very solid point-to-point solution for critical back haul applications.
