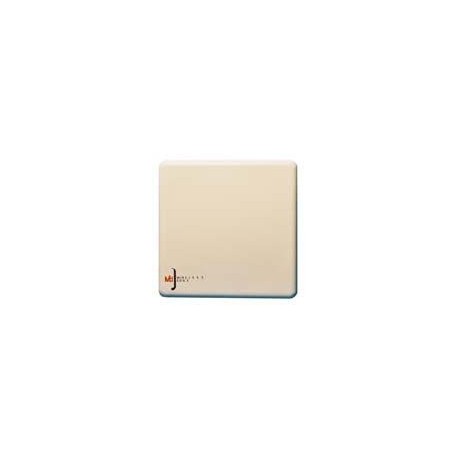

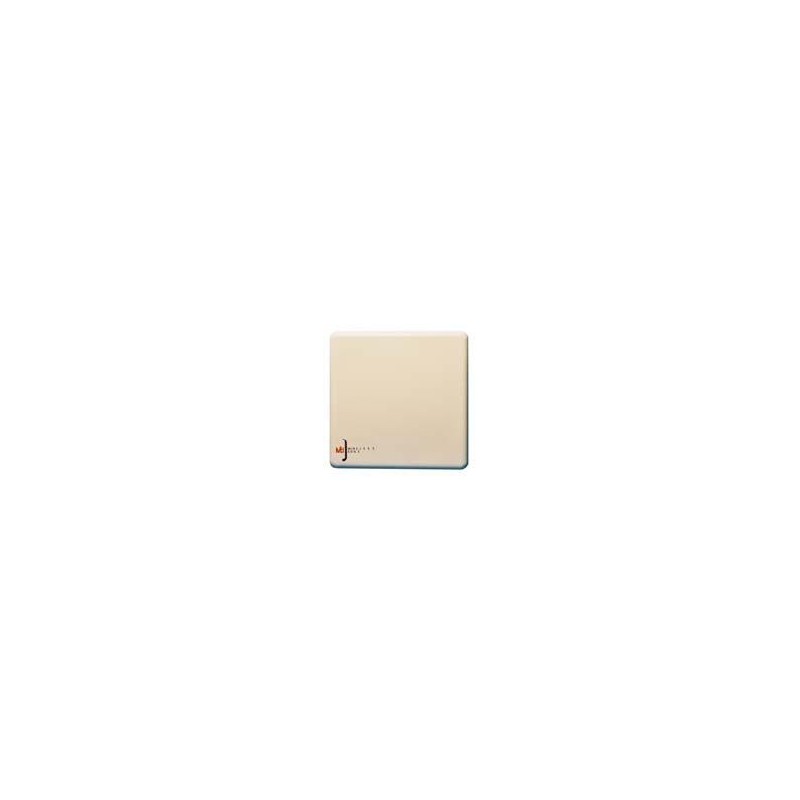

902-928 MHz Circular Polarization Single Polarized Antenna for RFID Readers

Benefits:
• Provides High performance Low Cost reader antenna solution
• Low installation and maintenance cost
• Maintains real estate aesthetic look and value

Key Features:
• Meets RFID electrical and environmental requirements
• High-Quality Low-Cost
• High Robustness and Endurance
• Lightweight antenna with low profile
• Very aesthetic look and Environmental friendly

Specifications:
• Frequency: 902-928MHz
• Gain: 9dBic
• Polarization: Right Hand Circular
• Horizontal Beamwidth: 63 degree
• Vertical Beamwidth: 63 degree
• Connector: Reverse Polarity TNC female (50 ohm)
• Operating Temperature: -55°C to +71°C
• Water Tightness: IP67
• Dimensions: 12.0 x 12.0 x 1.0in (305 x 305 x 25mm)

MT-120018 antenna mounting kit sold separately
