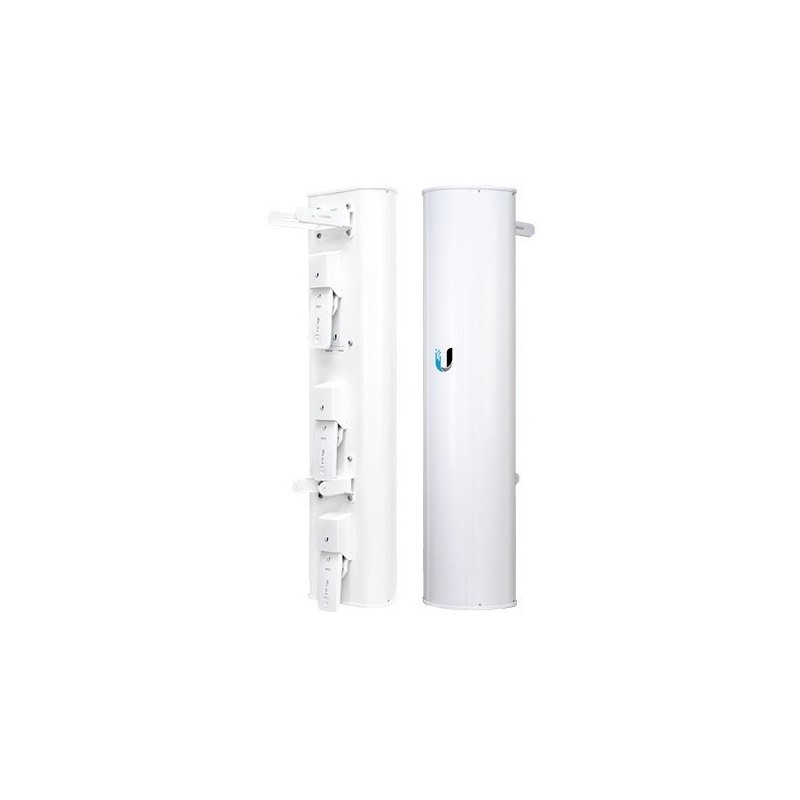

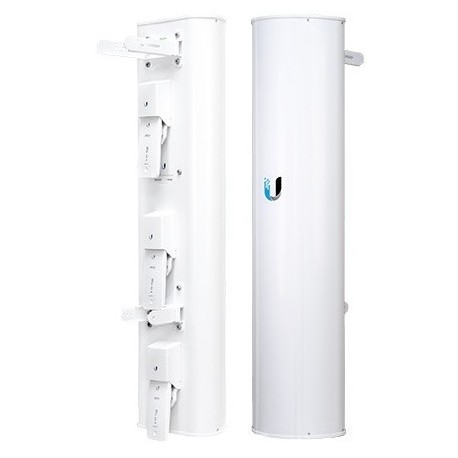

Ubiquiti Networks airPrism antenna features significant advances in noise isolation and beam performance to complement the Rocket 5ac Prism radios fo co-location deployments. The airPrism antenna and Rocket5ac Prism radios have been designed to seamlessly work together. Every airPrism antenna has three built-in Rocket radio mounts, so installation requires no special tools. Snap the three Rocket5ac Prism radios securely into place and mount the antenna for your PtMP link.

Product Features:
• Mount up to three Rocket5ac Prism radios for PtMP links
• Each Rocket radio corresponds with a specific 30° beamwidth and independently transmits and receives
• Deploy the Rocket5ac Prism for PtP or PtMP links in high RF noise environments

Product Specifications
• Dimensions: 322.6 x 201.5 x 1300 mm (12.7 x 7.03 x 51.18")
• Weight: 13.1 kg (28.9 lbs)
• Frequency Range: 5.15 - 5.85 GHz
• Gain: 22 dBi
• HPOL Beamwidth: 3 x 30° (6 dB)
• VPOL Beamwidth: 3 x 30° (6 dB)
• Electrical Beamwidth: 8°
• Electrical Downtilt: 2°
• Max. VSWR: 1.75:1
• Polarization: Dual-Linear
• Cross-Polarization Isolation: 30 dB Min.
• Interfaces: (6) RP-SMA Connectors (Weatherproof)
• Compatible Radio: Rocket5ac Prism
• Wind Loading: 534 N @ 200 km/h (120 lbf @ 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Mounting: Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
• ETSI Specification: EN 302 326 DN2
• Certifications: CE, FCC, IC
