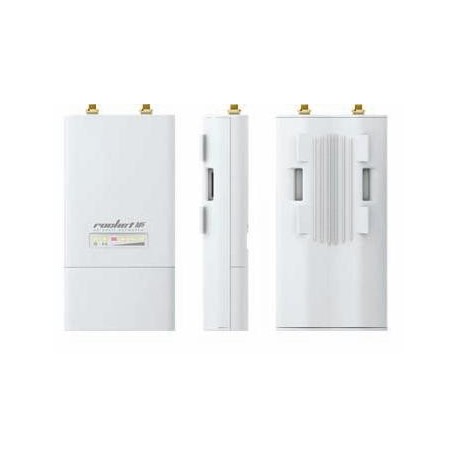

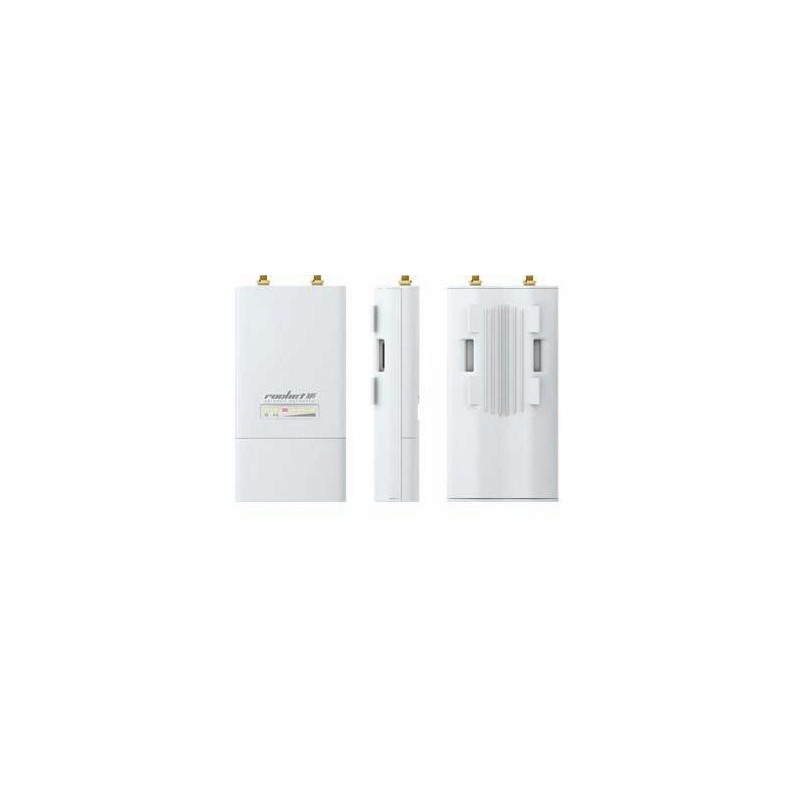

The Rocket is a rugged, hi-power, very linear 2x2 MIMO radio with enhanced receiver performance. It features incredible range performance (50+km) and breakthrough speed (150+Mbps real TCPI/IP). The device was specifically designed for outdoor PtP bridging and PTMP Airmax base-station applications. Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

RocketM5 Specifications

System Information

Processor Specs; Atheros MIPS 24KC, 400MHz
Memory Information: 64MB SDRAM, 8MB Flash
Networking Interface: 1 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface

Regulatory / Compliance Information

Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: YES

Physical / Electrical / Environmental

Enclosure Size: 16cm length x 8cm width x 3cm height
Weight: 0.5 kg
RF Connector: 2x RPSMA (Waterproof)
Enclosure Characteristics: Outdoor UV Stabalized Plastic
Mounting Kit: Pole Mounting Kit included
Max Power Consumption: 8 Watts
Power Supply: 24V, 1A POE Supply Included
Power Method: Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature: -30C to 75C
Operating Humidity: 5 to 95% Condensing
Shock and Vibration: ETSI300-019-1.4
