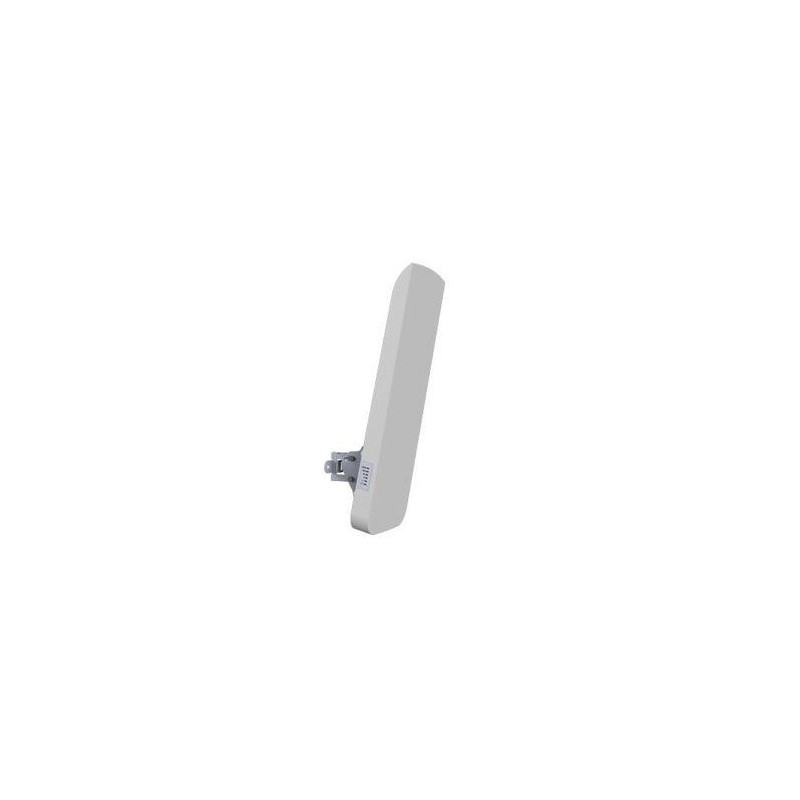

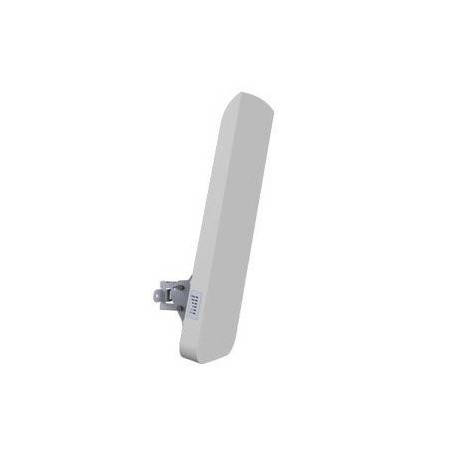

The APC 5M-90 delivers the highest performance and stability available in the 5 GHz Base Station class class. This product combines a robust IP-65 compliant enclosure with a highly advanced 802.11n radio core containing MIMO 2x2 technology along with an integrated high gain dual polarized 90° sector antenna. The device is powered by a reliable, advanced, and feature-rich operating system, allowing the creation of very high throughput and stable wireless networks quickly, safely, and effectively. In addition, the APC 5M-90 supports client operating mode which extends application scenarios, but the main advantage of this model is a base station with a professional integrated antenna.

The robust software engine allows the APC 5M-90 to work as bridge or as a router, provides a user-friendly Adobe Flex - based GUI with instant changes, includes useful installation tools (Site survey, Antenna alignment, Delayed reboot, Spectrum analyzer), and also is compatible with Wireless Network Management System for one of the most advanced management tools on the market.

Highlights:
160 Mbps capacity
50,000 PPS
4.780 – 6.100 GHz support
High output power 29 dBm radio
Integrated 18 dBi sector antenna (90°)
Powerful OS
iPoll 2  - enhanced communication protocol
Weather proof design
Free NMS (WNMS – Wireless Network Management System)
Wall and pole mounting option
Grounding option on the enclosure
